This article shows how to use Xcode scheme pre-/post-actions (Build and Run) to observe how your app creates and mutates defaults, by logging changes outside the app process.

What are Defaults?

In Swift and macOS development, defaults (via UserDefaults and the defaults CLI) are the lightweight persistence layer for user preferences, feature toggles, and other small pieces of state that need to survive app relaunches. They sit between in-memory settings and heavier storage options, letting you read and write simple values keyed by domain so the same code works in app code, Xcode schemes, and shell scripts. Because defaults are global to a domain, careful naming and clean-up are essential to avoid collisions and stale settings during development.

For a deeper dive, Fatbobman’s “UserDefaults and Observation in SwiftUI” is a solid blueprint: Xu Yang shows why Observation alone misses external changes, then patches the gap with a @ObservableDefaults macro that keeps SwiftUI views in sync with UserDefaults regardless of where writes originate. It’s an excellent, disciplined approach that centralizes keys, responds to external mutations, and favors lightweight persistence over ephemeral state. I use this approach for the rest of the article.

Challenge

When building a macOS application that stores defaults, I wanted to see what the app writes to the defaults store—specifically, what actually ends up on disk.

Solution

My preferred solution is to create a dedicated Xcode scheme that I use to track the defaults lifecycle for a single run. I created a basic macOS application and a set of defaults following guidance in “UserDefaults and Observation in SwiftUI”. First, I define a set of defaults that hold a few inputs from the application via an ObservableObject.

The App Structure

1
2
3
4
5
6
7
8

import SwiftUI
import Combine

class Defaults: ObservableObject {
    @AppStorage("custom_toggle", store: .group) var customToggle: Bool = false
    @AppStorage("custom_integer", store: .group) var customInteger: Int = 1
    @AppStorage("custom_string", store: .group) var customString: String = "abc"
}

Adding a .group store is good practice: it enables convenient sharing of default values across targets (and extensions). I define my shared UserDefaults suite like this:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14

import Foundation

extension UserDefaults {
    static let group: UserDefaults = {
        let staticString: String = "group.xz.public.swift.examples.DefaultsExperiment"
        if let teamIdentifierPrefix = Bundle.main.object(forInfoDictionaryKey: "Team Identifier Prefix") as? String {
            return UserDefaults(
                suiteName: teamIdentifierPrefix + staticString
            ) ?? UserDefaults.standard
        } else {
            return UserDefaults(suiteName: staticString) ?? UserDefaults.standard
        }
    }()
}

With those basics in place, I add a simple SwiftUI view so I can modify the stored preferences.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18

import SwiftUI

struct ContentView: View {

    @StateObject var defaults = Defaults()

    var body: some View {
        VStack(alignment: .leading, spacing: 16) {
            Toggle("Custom Toggle: \(defaults.customToggle ? "On" : "Off")", isOn: defaults.$customToggle)
            Stepper("Custom Integer: \(defaults.customInteger)", value: defaults.$customInteger)
            VStack(alignment: .leading, spacing: 4) {
                Text("Custom String:")
                TextField("abc", text: defaults.$customString)
            }
        }
        .padding()
    }
}

Observing the Observable Defaults

Now the key element: how do we conveniently observe changes to defaults? In Xcode you can use standard approaches like logging (via os.Logger / OSLog) or breakpoints. However, Apple’s implementation deliberately decouples mutation from persistence. In practice, writes go through an in-memory cache and persistence to disk is deferred and opportunistic. A write to disk usually happens under one of the following conditions:

  • Run loop idle: the process is idle and the cache flushes
  • Graceful app termination (Cmd + Q)
  • Normal quit: pending preferences are written to disk
  • App lifecycle transitions (background/foreground)
  • Memory pressure: forcing cache flush to reclaim memory
  • Periodic internal timers (undocumented heuristics)

Given that, I wanted to observe changes to the actual file independently, without relying on logging or breakpoints. A convenient solution is to use Xcode’s pre-run and post-run actions. These can be configured in your Xcode scheme via Product > Scheme > Edit Scheme. To achieve the desired outcome, configure one pre-run and one post-run action.

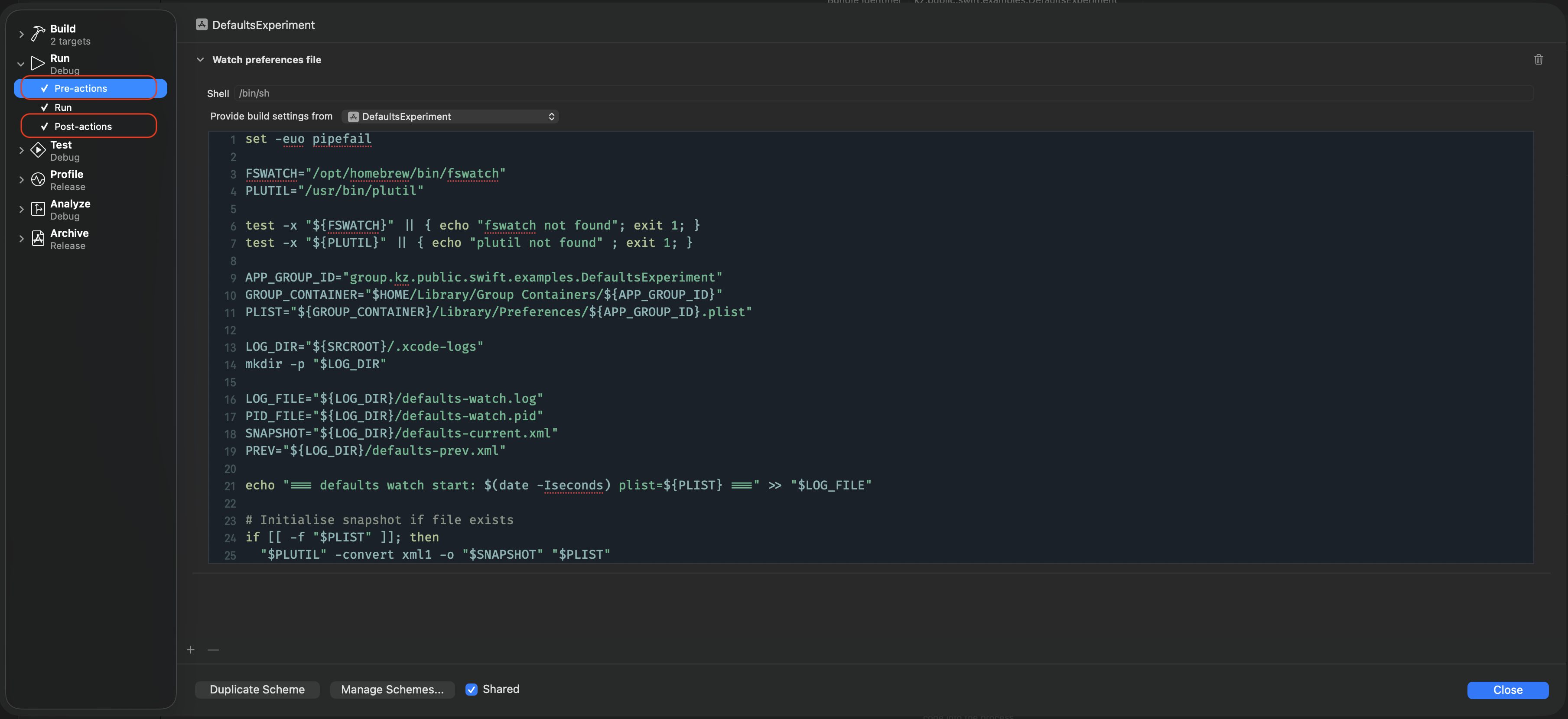

pre-run and post-run actions

Pre-run Action

Most of the work for the observation pipeline happens in the pre-run action. First, create a few variables and ensure the two tools you need are available:

1
2
3
4
5
6
7

set -euo pipefail

FSWATCH="/opt/homebrew/bin/fswatch"
PLUTIL="/usr/bin/plutil"

test -x "${FSWATCH}" || { echo "fswatch not found"; exit 1; }
test -x "${PLUTIL}" || { echo "plutil not found" ; exit 1; }

Note: Xcode can continue the build even if a pre-action fails. If you need failures to be hard-stops, move the checks into a build phase. Next, define a few paths so the action is easy to compose. In practice, we want the preference plist path plus some log/snapshot locations:

1
2
3
4
5
6
7
8
9

APP_GROUP_ID="group.kz.public.swift.examples.DefaultsExperiment"
GROUP_CONTAINER="$HOME/Library/Group Containers/${APP_GROUP_ID}"
PLIST="${GROUP_CONTAINER}/Library/Preferences/${APP_GROUP_ID}.plist"
LOG_DIR="${SRCROOT}/.xcode-logs"
mkdir -p "$LOG_DIR"
LOG_FILE="${LOG_DIR}/defaults-watch.log"
PID_FILE="${LOG_DIR}/defaults-watch.pid"
SNAPSHOT="${LOG_DIR}/defaults-current.xml"
PREV="${LOG_DIR}/defaults-prev.xml"

These variables have the following responsibilities:

  1. APP_GROUP_ID, GROUP_CONTAINER, and PLIST build the path to the binary plist.
  2. LOG_DIR and LOG_FILE keep a timestamped record of diffs between plist revisions.
  3. PID_FILE stores the background watcher PID so the post-run action can stop it.
  4. SNAPSHOT and PREV store XML snapshots of the current and previous plist for diffing.

The final part of the script spins up an fswatch loop that runs in the background and listens for filesystem events on the plist itself. fswatch --latency 0.2 coalesces writes so the loop gets one line per change; each line becomes a trigger that rotates the previous XML snapshot, re-renders the binary plist to XML via plutil, and writes both a timestamp and a unified diff to the log so you see exactly what changed. The subshell is backgrounded and its PID is written out so the post-run action can kill the watcher cleanly when the scheme finishes.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30

echo "=== defaults watch start: $(date -Iseconds) plist=${PLIST} ===" >> "$LOG_FILE"

# Initialise snapshot if file exists
if [[ -f "$PLIST" ]]; then
  "$PLUTIL" -convert xml1 -o "$SNAPSHOT" "$PLIST"
fi

(
  "$FSWATCH" --latency 0.2 "$PLIST" |
  while read -r _; do
    ts="$(date -Iseconds)"

    # Rotate snapshots
    [[ -f "$SNAPSHOT" ]] && mv "$SNAPSHOT" "$PREV"

    "$PLUTIL" -convert xml1 -o "$SNAPSHOT" "$PLIST"

    echo "[$ts] plist changed" >> "$LOG_FILE"

    if [[ -f "$PREV" ]]; then
      echo "---- diff begin ----" >> "$LOG_FILE"
      diff -u "$PREV" "$SNAPSHOT" >> "$LOG_FILE" || true
      echo "---- diff end ----" >> "$LOG_FILE"
    else
      echo "(initial snapshot)" >> "$LOG_FILE"
    fi
  done
) &

echo $! > "$PID_FILE"

The full pre-run action setup looks as follows:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50

set -euo pipefail

FSWATCH="/opt/homebrew/bin/fswatch"
PLUTIL="/usr/bin/plutil"

test -x "${FSWATCH}" || { echo "fswatch not found"; exit 1; }
test -x "${PLUTIL}" || { echo "plutil not found" ; exit 1; }

APP_GROUP_ID="group.kz.public.swift.examples.DefaultsExperiment"
GROUP_CONTAINER="$HOME/Library/Group Containers/${APP_GROUP_ID}"
PLIST="${GROUP_CONTAINER}/Library/Preferences/${APP_GROUP_ID}.plist"

LOG_DIR="${SRCROOT}/.xcode-logs"
mkdir -p "$LOG_DIR"

LOG_FILE="${LOG_DIR}/defaults-watch.log"
PID_FILE="${LOG_DIR}/defaults-watch.pid"
SNAPSHOT="${LOG_DIR}/defaults-current.xml"
PREV="${LOG_DIR}/defaults-prev.xml"

echo "=== defaults watch start: $(date -Iseconds) plist=${PLIST} ===" >> "$LOG_FILE"

# Initialise snapshot if file exists
if [[ -f "$PLIST" ]]; then
  "$PLUTIL" -convert xml1 -o "$SNAPSHOT" "$PLIST"
fi

(
  "$FSWATCH" --latency 0.2 "$PLIST" |
  while read -r _; do
    ts="$(date -Iseconds)"

    # Rotate snapshots
    [[ -f "$SNAPSHOT" ]] && mv "$SNAPSHOT" "$PREV"

    "$PLUTIL" -convert xml1 -o "$SNAPSHOT" "$PLIST"

    echo "[$ts] plist changed" >> "$LOG_FILE"

    if [[ -f "$PREV" ]]; then
      echo "---- diff begin ----" >> "$LOG_FILE"
      diff -u "$PREV" "$SNAPSHOT" >> "$LOG_FILE" || true
      echo "---- diff end ----" >> "$LOG_FILE"
    else
      echo "(initial snapshot)" >> "$LOG_FILE"
    fi
  done
) &

echo $! > "$PID_FILE"

Post-run Action

After the run completes, the post-run action uses the PID captured in defaults-watch.pid to shut down the background watcher started in the pre-run step. The script checks that the PID file exists, verifies the process is still alive, then sends a termination signal (and attempts to terminate any child process) so fswatch doesn’t keep running after Xcode stops the app. Finally, it removes the PID file to avoid leaking stale state into the next scheme run.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17

set -euo pipefail

LOG_DIR="${SRCROOT}/.xcode-logs"
LOG_FILE="${LOG_DIR}/defaults-watch.log"
PID_FILE="${LOG_DIR}/defaults-watch.pid"

if [[ -f "$PID_FILE" ]]; then
  pid="$(cat "$PID_FILE")"

  if kill -0 "$pid" 2>/dev/null; then
    echo "=== defaults watch stop: $(date -Iseconds) pid=${pid} ===" >> "$LOG_FILE"
    kill "$pid" 2>/dev/null || true
    pkill -P "$pid" 2>/dev/null || true
  fi

  rm -f "$PID_FILE"
fi

Summary

By wiring a pre-run action that snapshots your app group’s preferences plist and starts an fswatch loop, and a post-run action that stops it, you can capture real on-disk UserDefaults mutations during a single Xcode run. The script converts the binary plist to XML with plutil and appends a timestamped unified diff to a log, giving a lightweight, debugger-free way to see exactly which keys your app writes and when they eventually flush to disk.

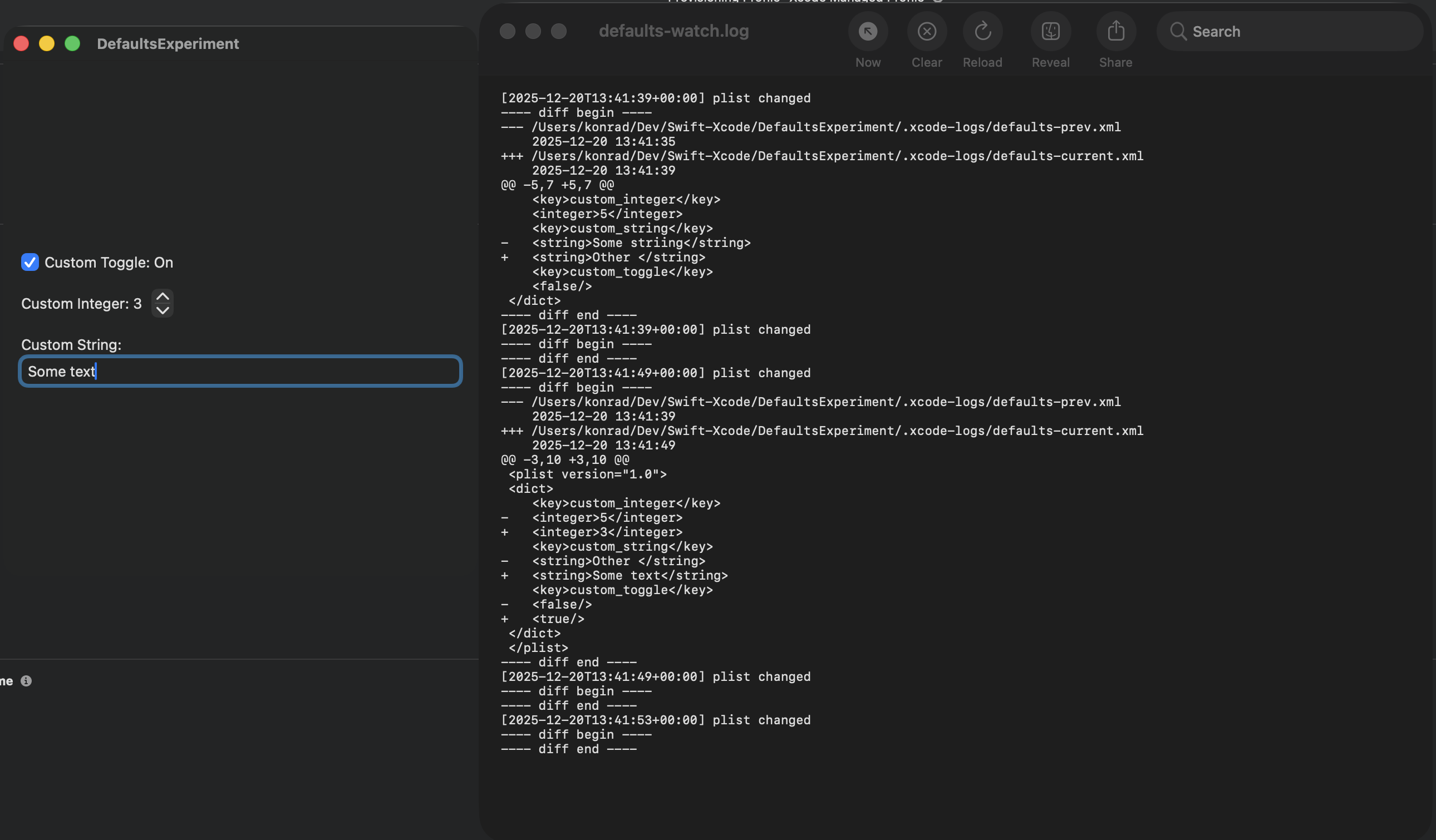

log preview
